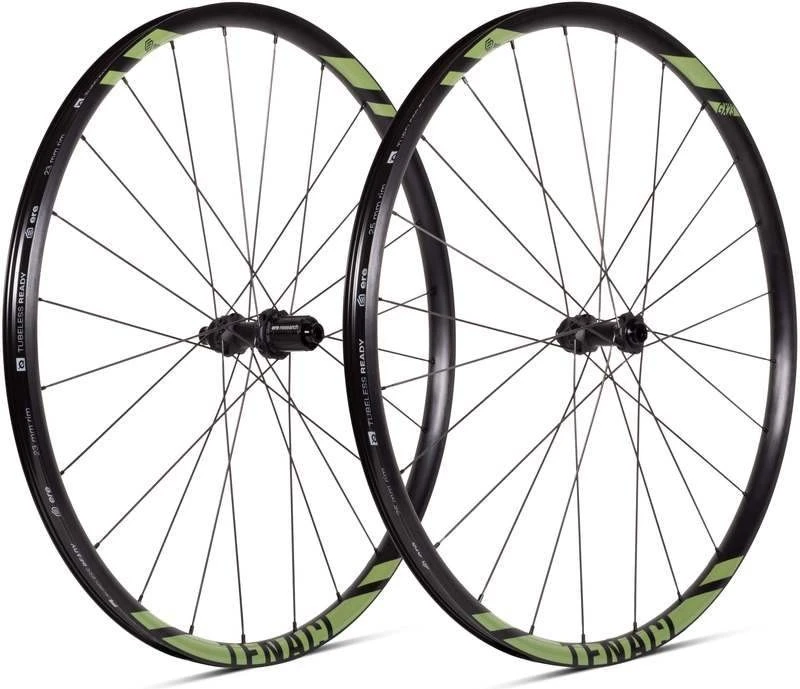

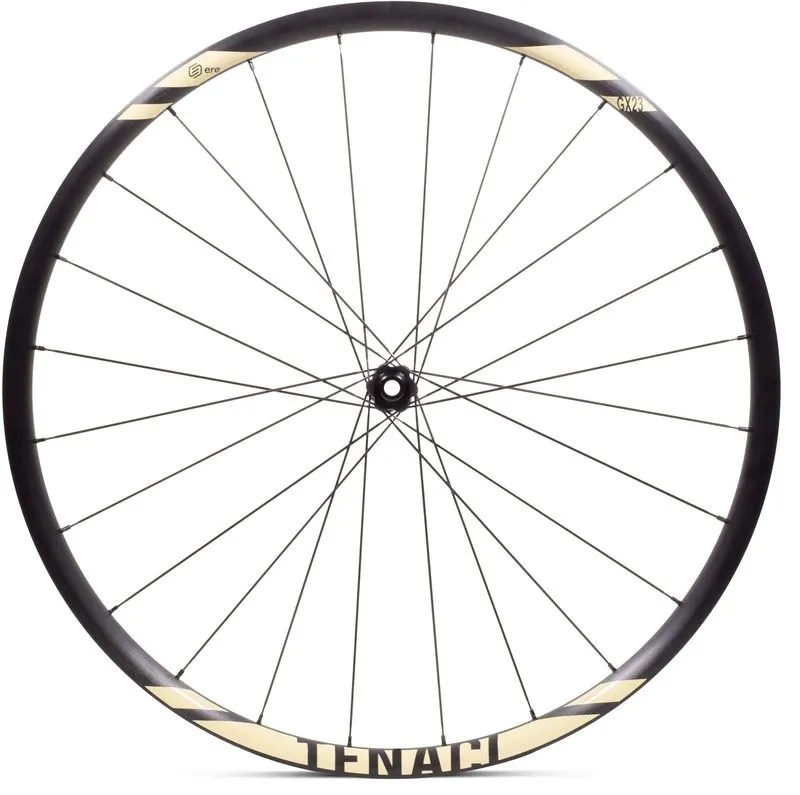

ERE Tenaci GX23 Road Wheelset – Shimano – Black/Sand

The most reliable and versatile wheels for your gravel and travel bike.

The low profile lightweight welded rim with it’s 26mm inner width delivers an amazingly comfortable ride while at the same time keeping the overall weight of the wheelset very low at 1640 g.

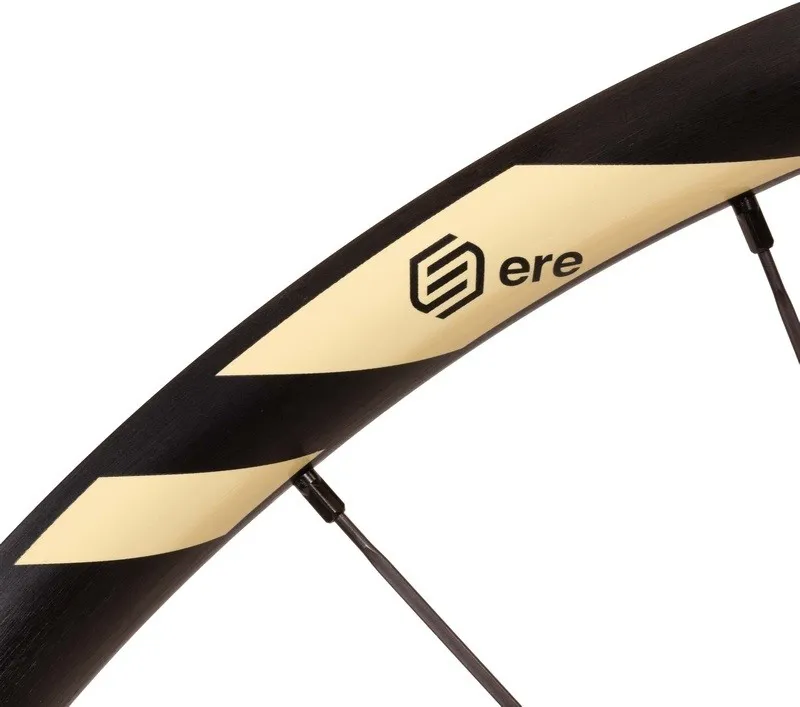

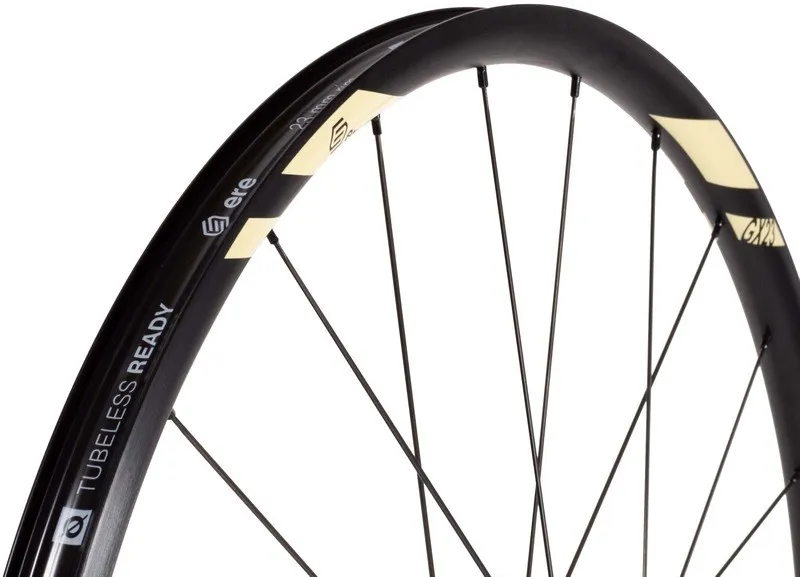

The new GX23 rim is an extruded, lightweigth, welded 6069 alloy rim that we specially made for our performance gravel wheels at an affordable price level.

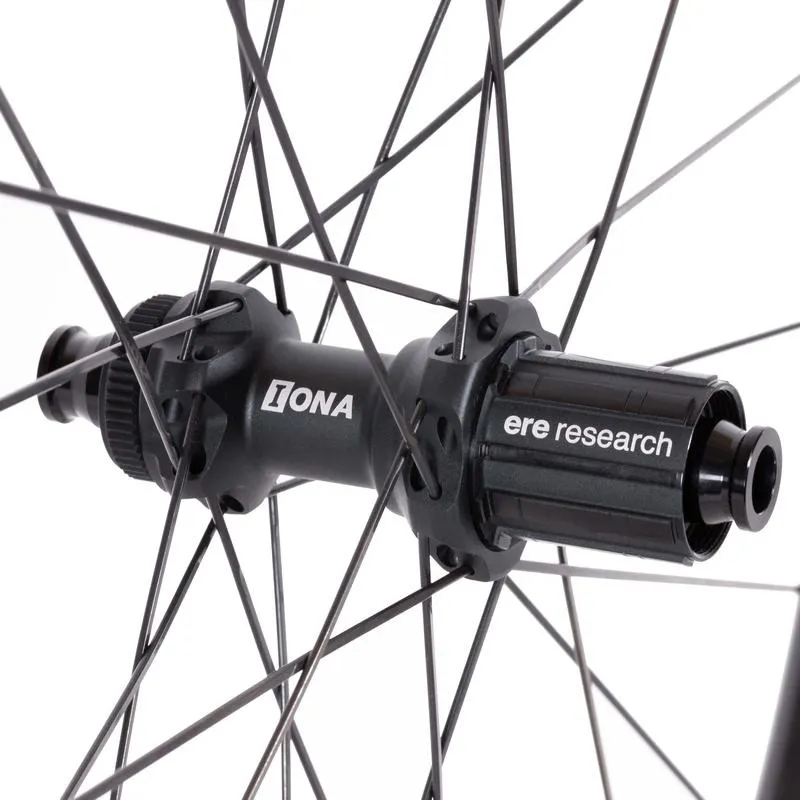

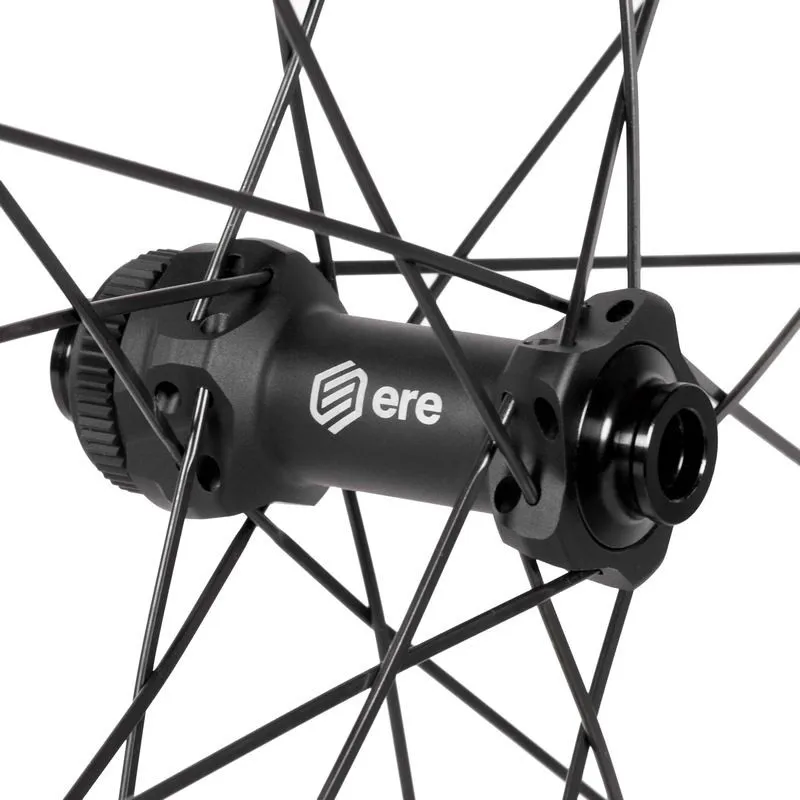

New Iona hubs:
Ere Research Iona hubs are a 100% in-house manufactured design. The hubs are bulletproof and will practically run forever when properly taken care of. The straight-pull hubset has a low profile and a sturdy design. Its angled flange supports the directional torque going through the hub body, so it can take any beating.

Torque 2 design:
Torque 2 is taking the forces that the hub absorbs from the disc brake load when braking. When the rear wheel gets torque from the hub body when pressure is applied through the chain and cassette, it directs those forces where the material is strongest. That way we can remove material where we can and add material where needed.

Our new Iona hubs are as light as possible, but without compromising on strength and reliability. At the same time, we accomplished keeping the structural integrity with a very thin wall design made from very high-grade aluminium. This results in weights as low as 235 g for the rear hub and 100 g for the front hub.

ERE Tenaci GX23 Wheelset Specifications:

• Weigth front wheel: 770 g
• Weigth rear wheel: 870 g
• Weigth wheelset: 1640 g
• Bead Shape: Tubeless Ready
• ETRTO: 622
• Hole pattern: 24 / 24
• Tire range: 38mm – 58mm
• Outside rim width: 33mm
• Inside rim width: 26mm
• Rim heigth: 23mm
• Rimtape: Ere TLR tape 30mm 2x loop
• Hub rear: IONA-S 24H T2 4-Pawl
• Hub front: IONA-S 24H T2
• Bearings: Fr & Rr SKF 6902 Body S&S 15692
• Feehub body: Shimano 11-speed
• Brake interface: Centerlock
• Axle system: TA F100x12mm & R142x12mm
• Axle options: QR
• Spoke nipple: DSN 14G*14.4MM brass black
• Spoke Front Drive side: Sapim CX Leader 296mm
• Spoke Front Non Drive side: Sapim CX Leader 298mm
• Spoke Rear Drive side: Sapim CX Leader 296mm
• Spoke Rear Non Drive side: Sapim CX Leader 298mm
• Included: 8 spare spokes and nipples, brake disc lock ring, TLR valves, spacer ring
