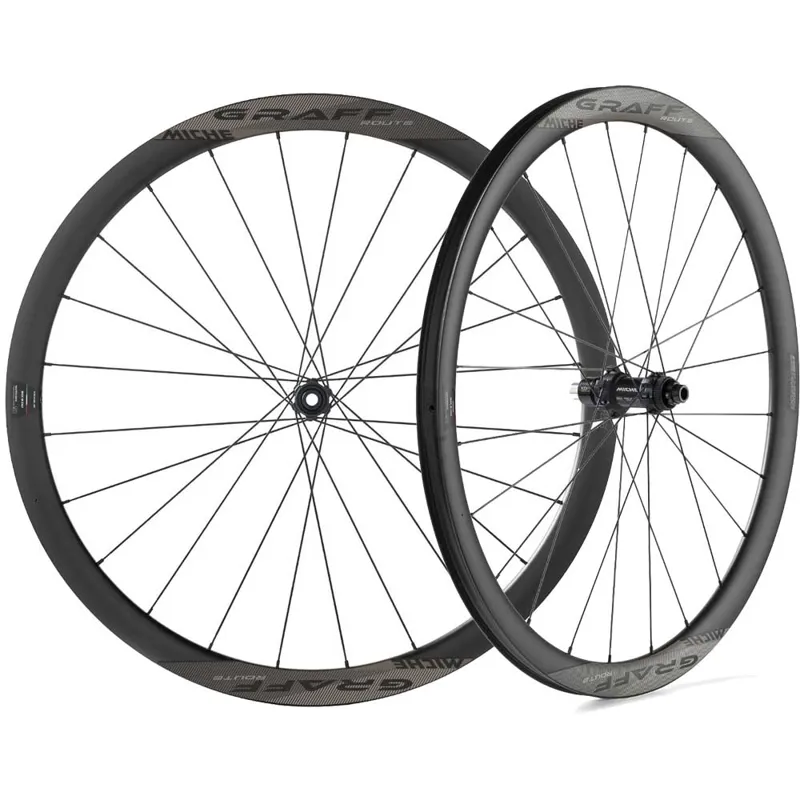

Miche Graff Route Cyclocross/Gravel Wheelset – Black

The Graff Route Wheels from Miche have been specifically designed for gravel use. The aerodynamic profile of the new HM700 carbon fibre rim combines excellent speed and handling on both gravel and road.

The rim has been designed with a 36mm profile and a 24mm hookless internal channel offers greater impact resistance and more stability when going downhill.

The Graff Route Wheels are Recommended for use with TLR tyres starting from 35c up to 55c. The lacing pattern of the 24 straight-pull front and rear spokes make the wheel light and greatly improves load distribution generated while pedalling.

X Graff Hubs produced in-house by Miche are CNC Machined in Ergal 7075 HT, mounted on high smoothness bearings with simplified hub movement regiastration which can be adjusted to fine increments even when the wheel is mounted.

The Graff Route is available for the various freehubs that exist on the market with Shimano HG, Sram XDR and Campagnolo Ekar free bodies. The wheels are sold with the tubeless kit assembled and guaranteed by CQ Miche.

Specification:

• BEARINGS: MICHE Sealed bearing
• RIM DIMENSION: 622-24C
• TRANSMISSION TECHNOLOGY: RES 30 Rapid Engagement System
• RIMS PROFILE HEIGHT MM: F 36 – R 36
• WHEELSET INCLUDES: Wheels bags/ Instruction booklet/ Center lock brake rotor lock ring
• MAX WEIGHT BIKE + USER: 100 Kg
• ASTM CLASSIFICATION: 2
• SPOKES ASSEMBLY PATTERN: 24 – 24 / Crossed
• TYRE DIMENSIONS: 35mm ÷ 55mm
• TYRE TYPE: Tubeless
• RIM INNER WIDTH MM: 24
• RIMS MATERIAL: UD carbon fibre – Hookless HS
• REAR AXLE MM: 12
• FRONT AXLE MM: 12
• O.L.D. MM: 100 – 142
• SPOKES: Stainless steel black/ aero/ straight-pull/ double butted
• HUBS MATERIAL: AL 7075 T6
• COMPATIBILITY: CA N3W – SH – XDR
• FREEHUB BODY MATERIAL: AL 7075 T6 – Steel
• NIPPLES: AL 7075 T6 / Black
• BRAKING SYSTEM: Disc Center Lock
• WEIGHT 1565 (+/-3%) (Tubeless Ready Kit + 20)
