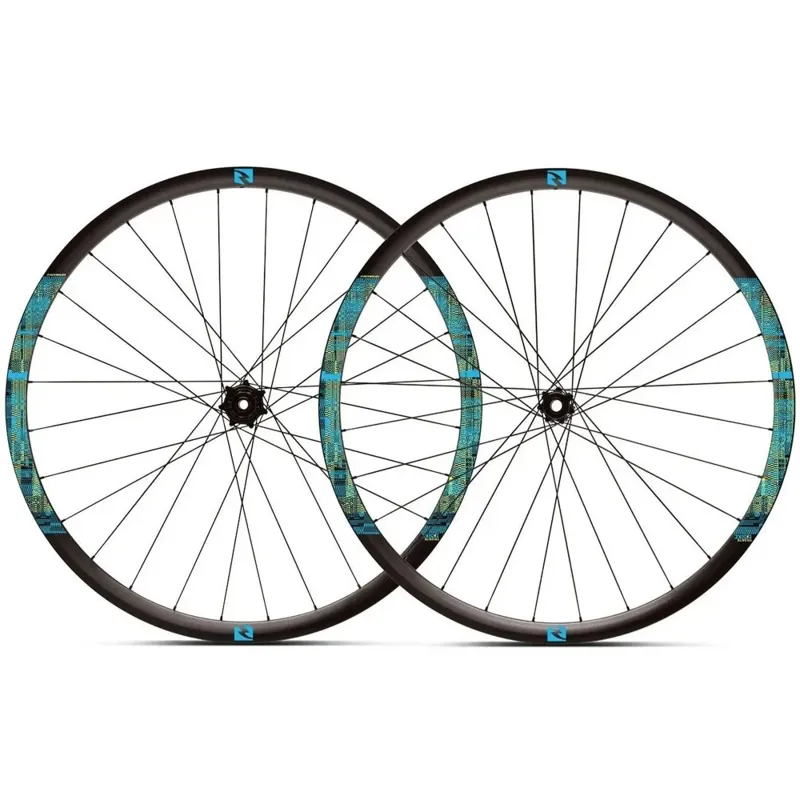

Reynolds® Reynolds TRE 309 29er MTB E-Bike Wheelset – SRAM XD Boost

The TRE series is designed specifically for the demands of the more refined generation of e-mountain bikes, which allow you to cover steeper terrain in a shorter time, allowing riders to go further faster. Since more miles mean greater wear, Reynolds built the robust TRs rims to an e-bike-specific hub using 32 e-bike-specific spokes and brass nipples. The result is a lightweight wheel for riders demanding top performance from their new machines.

Key Features:

• An asymmetrical rim profile provides a stronger wheel through more even spoke tension.
• Built with sapim e-lite spokes which use 2.3mm spoke head and durable brass nipples.
• Reynolds TRE hub.
• 32h front and rear with 36h rear option available.
• 6 pawl, full inline engagement for ultimate drive mechanism durability.
• 10° of engagement.
• Short steel pawls and reinforced ratchet ring area provide greater durability and strong engagement.
• The 5-bearing rear hub design (3 bearings in freehub) helps to disperse the increased load from the e-bike motor.
• Cromoly steel axle and freehub body for increased durability.
• Reinforced is-6 disc mount for increased durability.
• Cooling fins behind brake mount for heat dissipation.
• Available in boost only.

Specifications:

• Rim Technology: Hookless tyre bead, Tubeless Ready, Mountain Rim 5 (MR5).
• Rim Depth: 26mm.
• Rim Width: Internal – 36mm ¦ External – 42mm.
• Hubs: Reynolds TRe Mountain Hub, 100% CNC machined – 10-degree engagement, 6 pawl inline freehub.
• Brake Interface: Disc Only, IS 6 Bolt.
• Front Axle: 15x110mm.
• Rear Axle: 12x148mm.
• Freehub Body: Shimano HG or SRAM XD.
• Spokes: E-Lite J-Bend.
• Nipples: External Brass.
• Size: 29″.
• Weight: 2150g.
